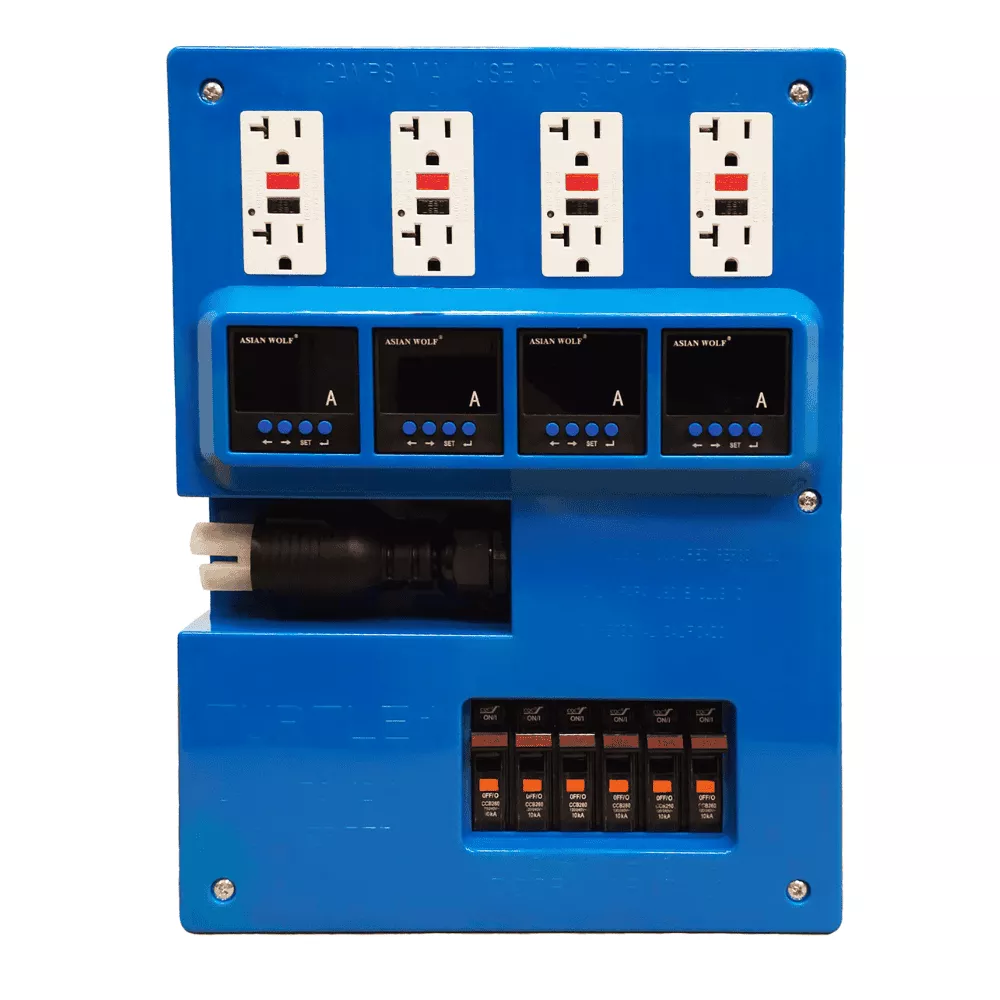

Power Distribution Box can come in handy for residential projects. It uses 220 volts/30 amps from a dryer or stove outlet. The power box splits the power to 4 – 115 volt / 15amp circuit breakers that each have their own 2 plug GFCI receptacle. Click here for a full kit including all of the adapters and cords you will need.
National Electric Code for extended power usage states that you shouldn’t exceed 80%. For the extended use of the box, only 12 amps per GFCI should be utilized.
Specifications
- Rating: ETL Listed 125/250V 30 Amp
- MAX Amps: 60 Amps/125 Volts
- Input: NEMA L14-30 Twist Lock
- Receptacles: (4) 15 Amp Duplex
- GFCI Protection: YES
- Overcurrent Protection: YES
- Power Box Weight: 10 Pounds
