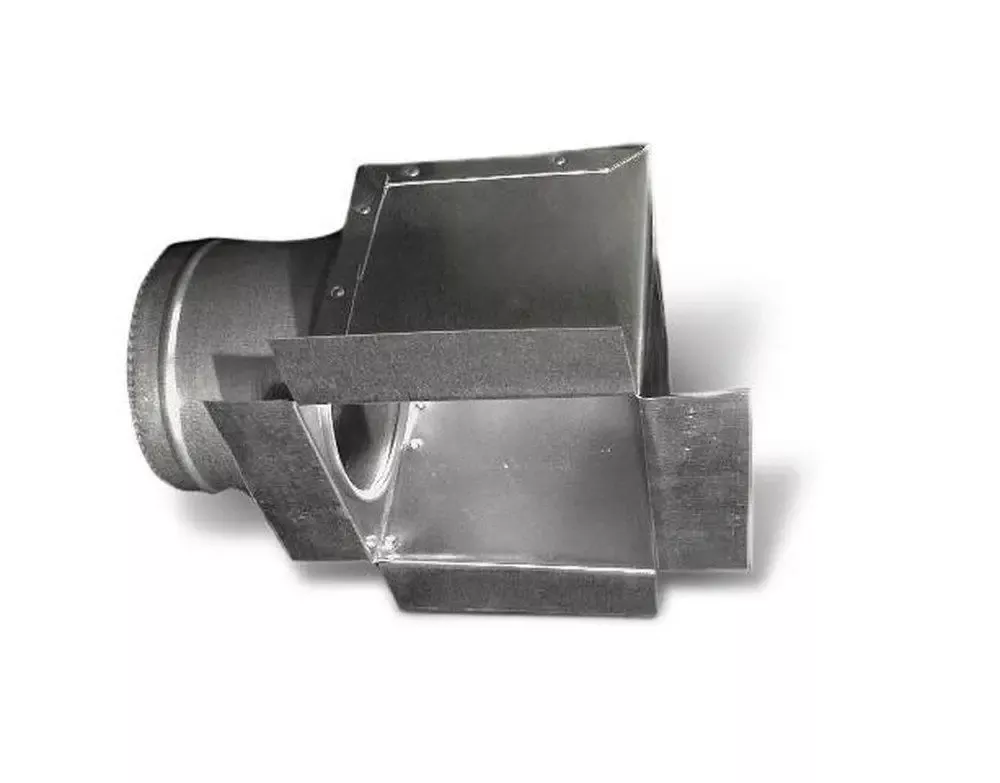

6″ x 6″ x 6″ Side Outlet Ceiling Diffuser Box

The Lukjan Ceiling Diffuser Box (Series 1001) with side outlet provides reliable airflow transitions for ceiling-mounted diffusers.

This diffuser box is designed to connect 6-inch round ductwork to ceiling diffusers, ensuring balanced and efficient air distribution in residential and light commercial HVAC systems.

• Series: 1001 Ceiling Diffuser Box with side outlet configuration.
• Collar Size: 6-inch round collar for standard duct connections.
• Box Dimensions: 6 inches length × 6 inches width, compact for ceiling cavity installations.
• Construction: Galvanized steel body provides durability and corrosion resistance.
• Design: Side outlet simplifies duct routing while supporting consistent airflow delivery.

e conf

Technical Data & Performance

• Application: Facilitates smooth airflow transitions from ductwork to ceiling diffusers.
• Performance: Promotes uniform air distribution while minimizing leakage and maintaining system efficiency.
• Installation: Compact 6″ × 6″ design fits within tight ceiling spaces and integrates easily with standard diffuser layouts.
• Use Case: Suitable for residential and light commercial HVAC systems requiring efficient ceiling supply air distribution.
